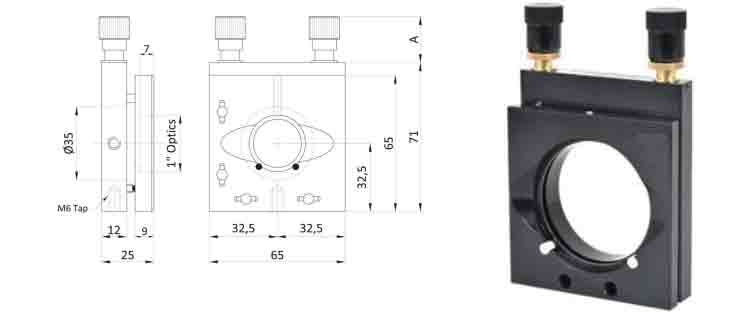

The Top Adjustable Kinematic Optical Mounts is very stable and yet easy to adjust without burning your fingers. The Top Adjustable Kinematic Optical Mounts unique ball-and-wedge drive mechanism enhances the overall performance of the 1” (25.4mm) diameter optical mount by reducing stiction and backlash to negligible levels while maintaining a compact and robust package.

The high resolution adjustment screws have a locking mechanism to prevent inadvertent adjustment. Top Adjustable Kinematic Optical Mounts are designed for use in compact spaces. They give you easy access to both tip and tilt adjustments from the top without worrying about blocking the beam. .

• Allows adjustment without blocking optical beam
• Reduces risk of laser-related injuries
• Ideal for use in laser cavities
• Slimmer profiles for mounting in tight spaces

Specifications:-

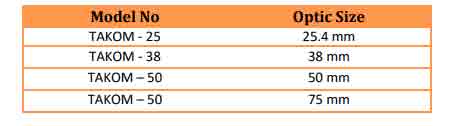

Optic Diameter: 25.4 ; 38 ; 50 ; 75 mm
Thread Type: M6 on both orientation.
Mounting Provision: Vertical and Horizontal.
Drive type: Covered Lead Screw Drive/ Micrometer
Sensitivity: 4 arc sec or less.
Angular Range: ±3.5°.
Optics holding: Stepped bore with Teflon supporting guides and tightened by nylon
Adjustment Screw Thread: 100 TPI (0.25mm)
Mechanism: Kinematic
Material: Aluminium Alloy.

Note: The custom dimensions are available upon request beside standard size.
